T48 Programmer 11 Adapter t48 eprom Programmer for with Xgecu T48 IC Bios AVR MCU SPI Nor NAND Flash EMMC Clip Socket

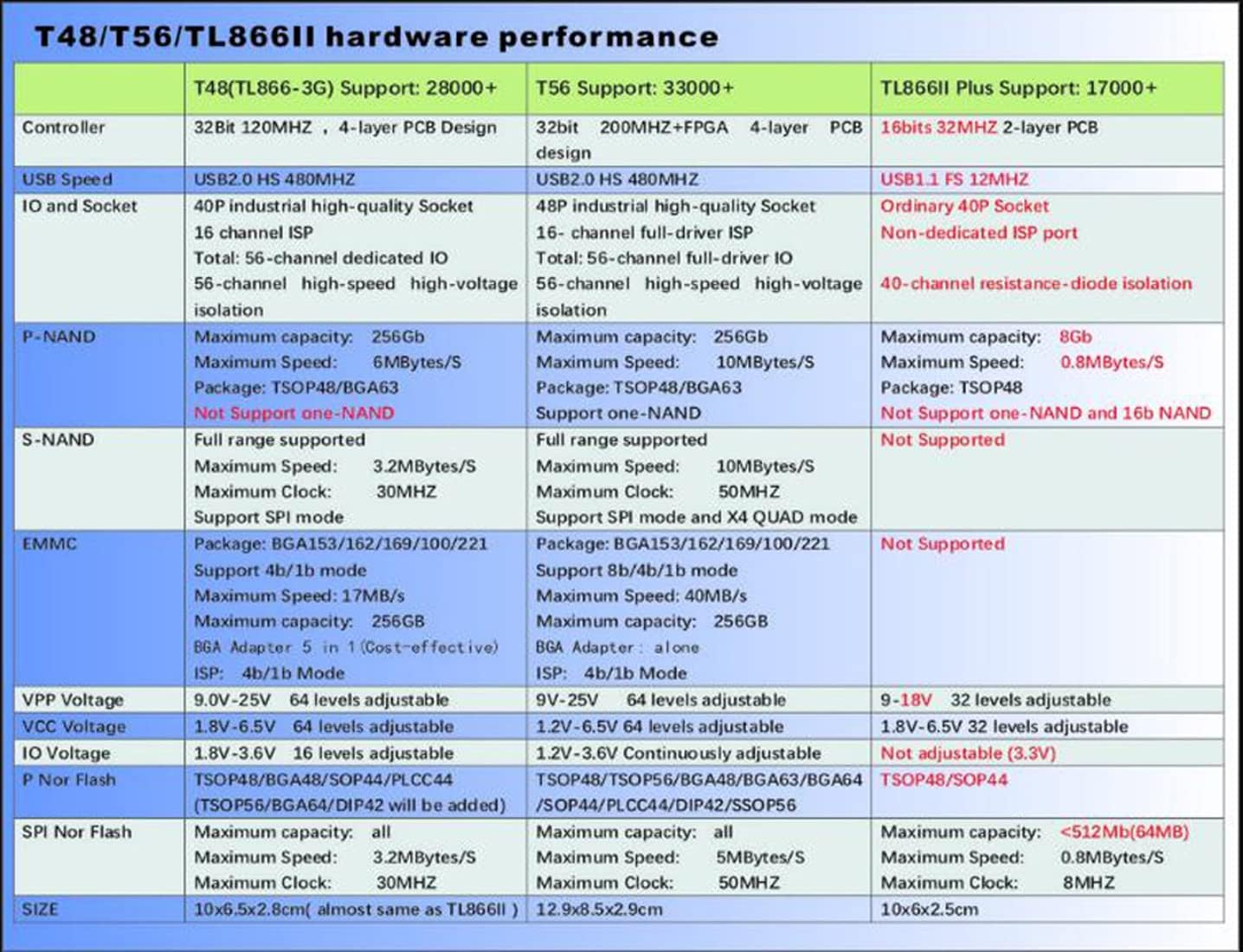

T48 programmer is the TL866ii plus programmer replacement, it's hardware parameters: (almost the same as TL86II) 16 channel ISP total 56-channel. dedicated IO 56-channel high-speed high-voltage insulation, VCC voltage 1.8-6.5 V, 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable. Power consumption: 5V <500MA. Static power consumption: 60 mA. Without external power supply interface. Self-test each pin of VPP/VCC/GND/IO Suitable for developers and maintenance personnel, can do small batch production for high capacity chips, support simultaneously working with 4 programmers on each computer. Suppport high-voltage chips, VPP maximum up to 25V, that is what TL866II cannot achieve. Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small (size is almost the same as TL866II), code runs much faster. Package includes: 1x T48 MiniPRO programmer,1x USB cable,1x SOP8 clip,1x SOP28 socket,1x tssop28 socket,1x download cable,1x SOP8-DIP8 150mil adapter,1x SOP8-DIP8 208 208 mil adapter,1x PLCC44-DIP44 adapter,1x PLCC32-DIP32 adapter,1xSOP8/msop8/tssop8/ssop8/SOP16-DIP16 simple adapter,1xqfp32-100 pcb board adapter,1xwson8 6*5/8*6 pcb board adapter,1xQFN32 0.8 mm pcb board adapter,1x Sop8-28 150-300 mil PCB board adapter,1x PLCC IC extractor,1x 2 pin headers

• T48 (TL866-3G) programmer is the improvement of TL866II Plus programmer,With 40-pin industrial high-quality ZIF Socket (Pluggable/replaceable),.Based on 32-bit MCU with 120MHZ and 4-layer PCB design.
• Support high-capacity NAND EMMC up to 256GB and programming speed is much higher. Suppport high-voltage chips, such as 27Cxxx series, VPP Maximum up to 25V, that is what TL866II cannot achieve.n do small batch production for high capacity chips.
• Support operating systems: Windows XP,2003,2008,Vista Win7 WIN8 WIN10 WIN11
• Self test function, self test each pin of VPP/VCC/GND/IO,suitable for developers and maintenance personnel
• Before buying, please contact us for checking the chip models you want to program whether this programmer support or not. The new software will be improved future,
